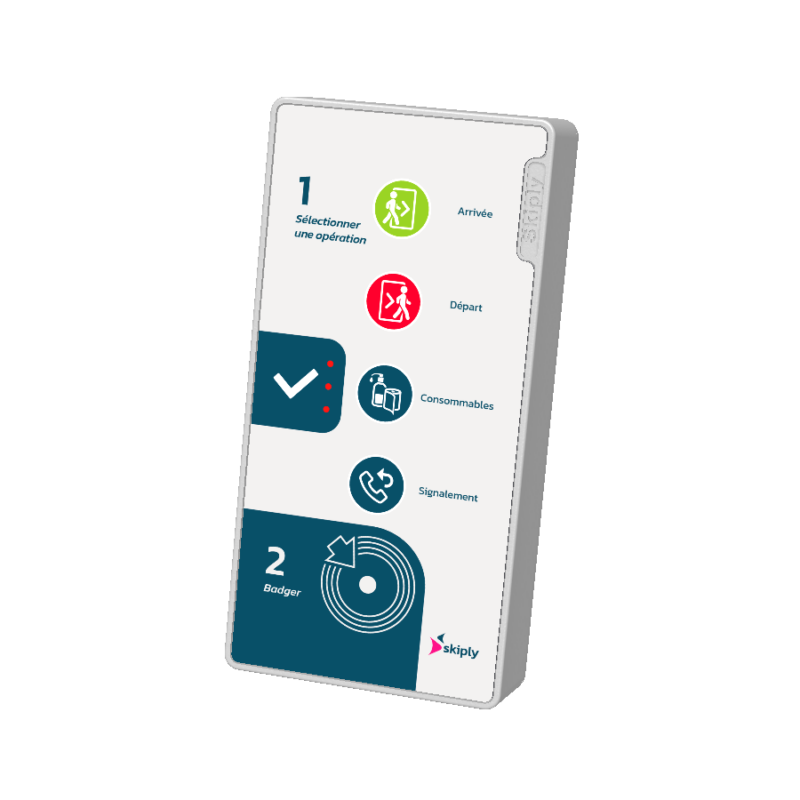

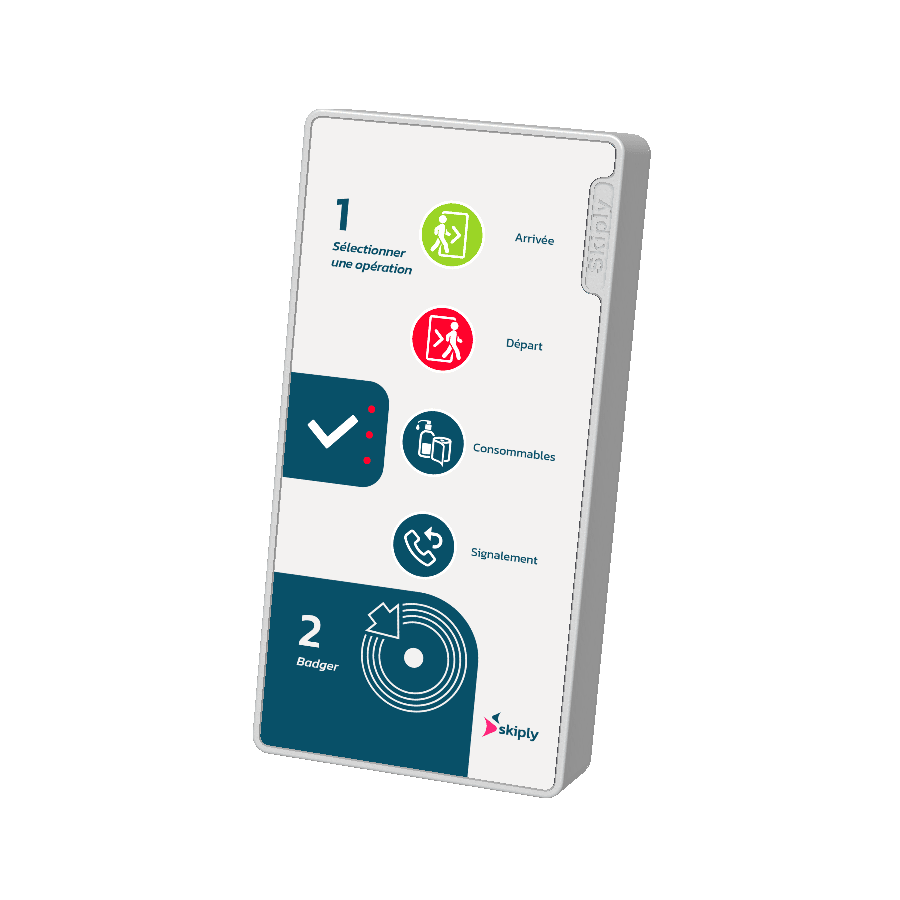

Wireless NFC and RFID Time Clock
Clock S is a wireless RFID Time Clock that runs on batteries for years. It operates on an independent telecommunication network (dual mode LoRaWAN and Sigfox), thus eliminating the need for on-site connectivity.
Waterproof, it can be used indoors as well as outdoors, for example to clock in and out on a construction site.
In addition to the Arrival / Departure buttons, 2 additional buttons allow to add functionalities according to the needs. For instance, this can be used to report break time.
Mobile NFC/RFID time clock with 4 configurable buttons
Arrival and departure buttons allow staff to clock in and out.
2 additional customizable buttons can be used to:
- Trigger email and SMS alerts for service requests or problem reporting.
- Add features, such as taking breaks into account during the work day.
The data collected is transmitted in real time and securely.
Connected to your favorite tools: HRIS, ERP, CMMS…
Thanks to Skiply’s Ubiqod platform, you can send the data collected by the Clock S to the software of your choice. If you lack specialized software for time and attendance tracking, you have the option of utilizing Excel online or a Google Timesheet.
Technical characteristics of the NFC/RFID time clock
- Dual mode connectivity Sigfox – RC1 (class 0, in other words, the best) and LoRaWAN (compatible with all public and private networks)
- Pointing by pressing and passing a RFID badge (MIFARE 13.56 MHz standard)
- Autonomy: up to 3 years on batteries
- Easy to install: no SIM card, no Wi-Fi connection, ready-to-use RFID tagger Attaches to any vertical wall with screws or double-sided adhesive
- Sound and light feedback (LED)
- Customizable: from 2 to 4 buttons per RFID reader. Graphic personalization of the entire front face by adhesive, possibility of putting your own logo.
- Different configurations possible: clocking in and out, validation of specific actions, real-time service requests (consumable replenishment, callback requests, etc.)
- Waterproof: IP65
- Compatible with Skiply’s Ubiqod and FMS platforms
- Up to 500 passages per hour depending on the configuration (LoRaWAN only)
| Weight | 0,300 kg |
|---|---|
| Dimensions | 20 × 10 × 3 cm |
Use cases
Clock S offers exceptional versatility and can be installed in nearly any location, even in areas without electricity. This feature makes it especially ideal for field work and industries such as construction and cleaning services. Moreover, it allows for the reuse of RFID badges that your staff may already possess.

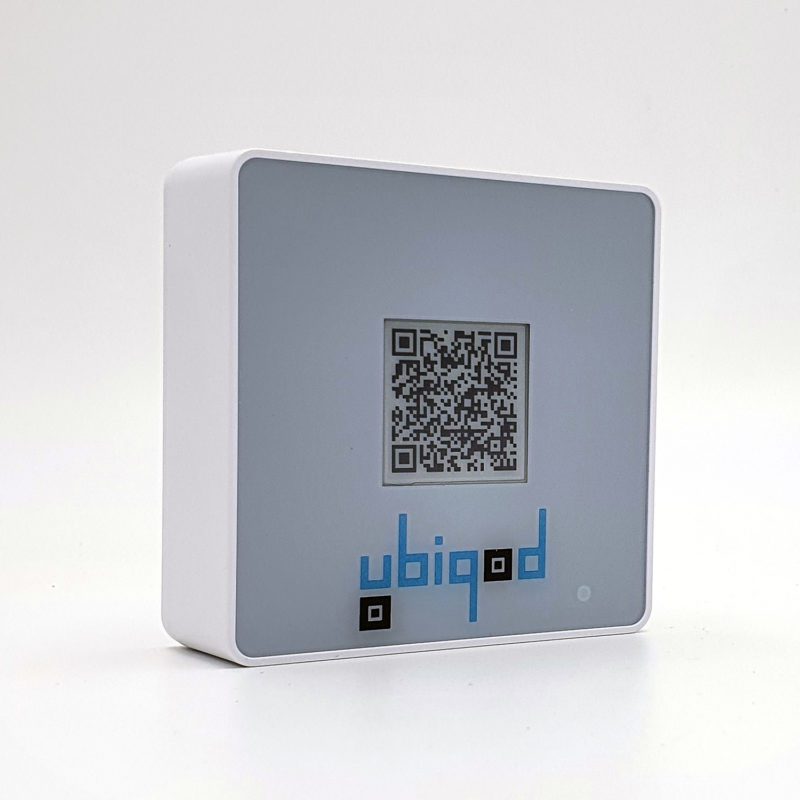

For those seeking an alternative, Skiply offers a QR code-based solution through Ubiqod Key.
Thanks to its real-time data transmission capability, you can also leverage this system to initiate alerts if field staff fail to complete a designated task on site as scheduled.
